Spacing scale as CSS variables (--mw-space-*) in sass/spacing.css - #670

Merged
wuda-io merged 1 commit into
materializecss:v2-devfrom
PetriLahdelma:spacing-scale
Oct 12, 2026
Merged

wuda-io merged 1 commit into
materializecss:v2-devfrom
PetriLahdelma:spacing-scale

Conversation

@PetriLahdelma

Copy link
Copy Markdown

As discussed in #665: the spacing scale as native CSS variables in a separate file, with screenshots.

sass/spacing.css (new, forwarded from materialize.scss after the M3 tokens):

:root {
  --mw-space-0: 0;
  --mw-space-1: 0.25em;
  --mw-space-2: 0.5em;
  --mw-space-3: 0.75em;
  --mw-space-4: 1em;
  --mw-space-5: 1.5em;
  --mw-space-6: 3em;
}

$spacing-values now points at these variables, so the m-* and p-* helpers follow any client-side override.

The six declarations that were off the scale. Your root font size is 14px, so the steps are 3.5, 7, 10.5, 14, 21 and 42px. My comment in #665 assumed 16px; at 14px three of the nearest steps are different, so I used those:

Where Before After Computed at 14px
blockquote margin 20px 0 var(--mw-space-5) 0 20px to 21px
.page-footer margin-top 5rem var(--mw-space-6) 70px to 42px, as you suggested
.footer-copyright padding 10px 0px var(--mw-space-3) 0 10px to 10.5px
td, th padding 15px 5px var(--mw-space-4) var(--mw-space-1) 15px 5px to 14px 3.5px
.responsive-table thead tr padding 0 10px 0 0 0 var(--mw-space-3) 0 0 10px to 10.5px
.responsive-table tr padding 0 10px 0 var(--mw-space-3) 10px to 10.5px

Helper classes. At the 14px root, em and rem give the same result, so .p-1 to .p-6 and the margin helpers render exactly as before in normal text. The difference is inside an element with its own font size, such as a heading or a small chip: there the helpers now scale with that text. That is what em means, and it may be worth a line in the release notes.

Screenshots of v2-dev and this branch side by side, built with npm run build. The responsive table is shown below 992px.

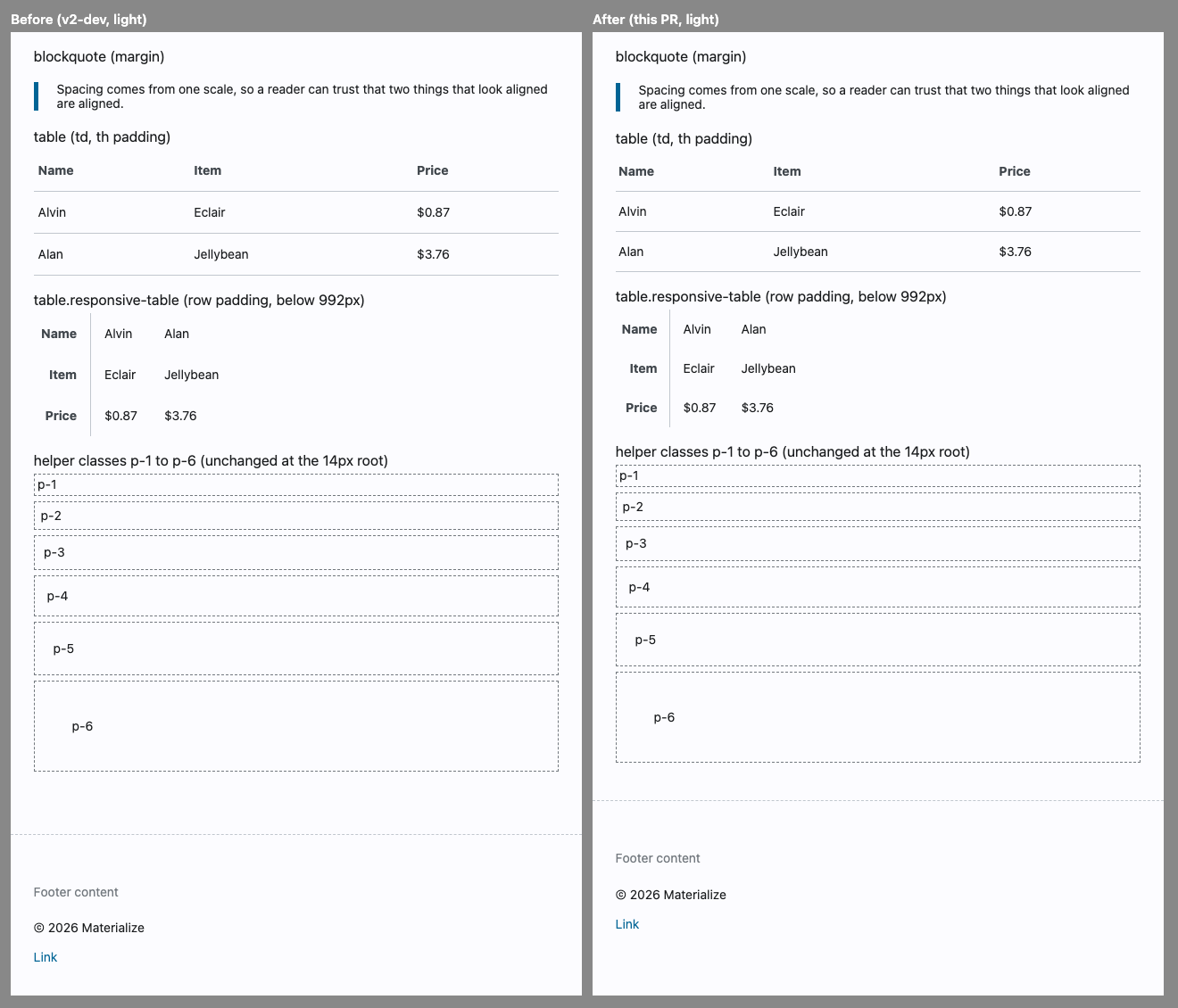

Light:

light

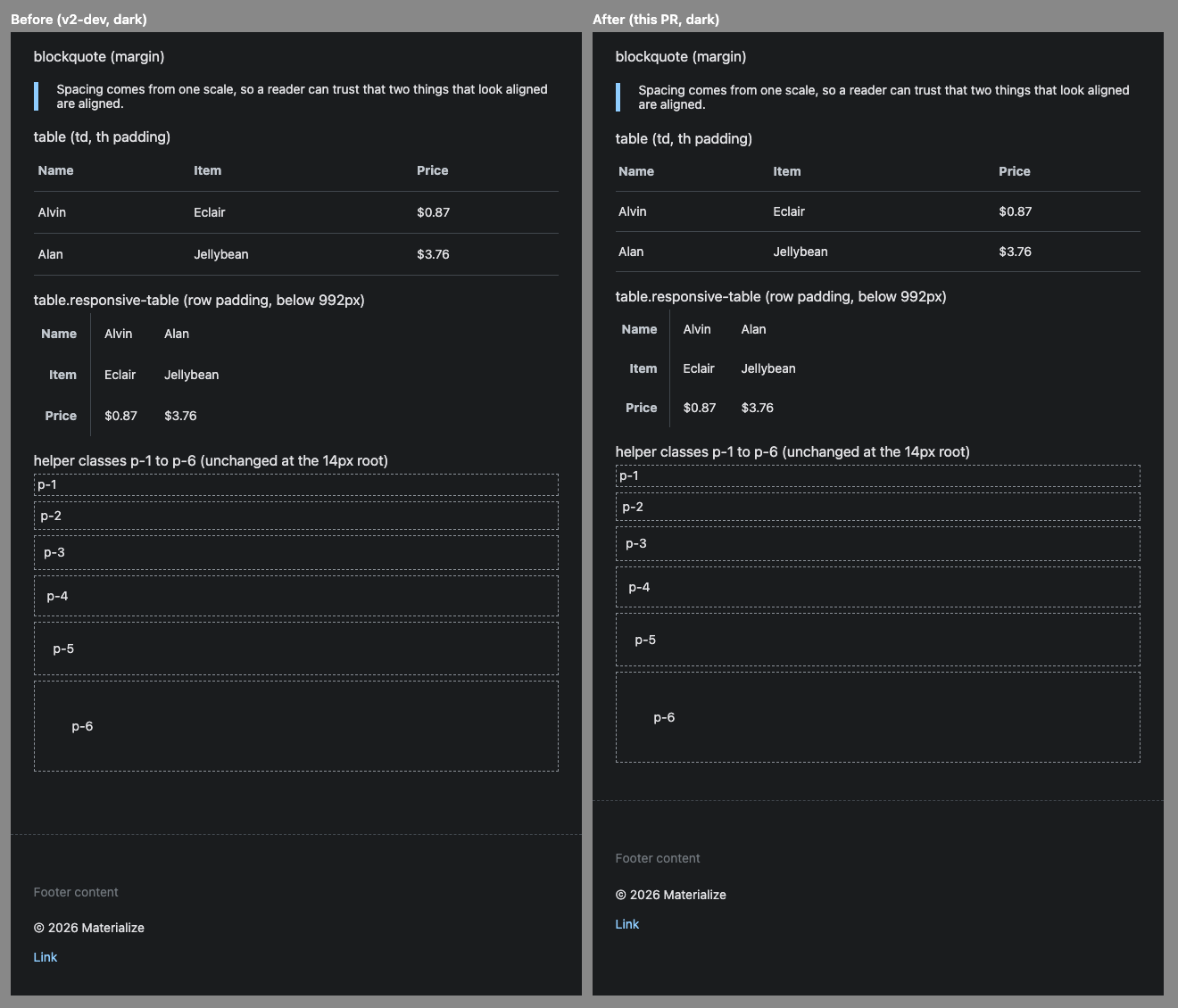

Dark:

dark

npm run lint and npm test (50 tests) pass.

The $spacing-values steps become --mw-space-0 to --mw-space-6 in :root, in
em, in a separate sass/spacing.css forwarded from materialize.scss. The map
points at the variables, so the m-* and p-* helpers follow a client-side
override. Six declarations in _global.scss that were off the scale now use
the nearest step at the 14px root (blockquote, footer, footer copyright,
table cells, responsive table rows); the footer margin snaps to 3em.

Refs materializecss#665
@wuda-io

wuda-io commented Oct 12, 2026

Copy link
Copy Markdown
Member

ok LGTM

@wuda-io wuda-io left a comment

Copy link
Copy Markdown
Member

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

LGTM

@wuda-io
wuda-io merged commit 15898e7 into materializecss:v2-dev Oct 12, 2026
1 check passed
PetriLahdelma added a commit to PetriLahdelma/stylelint-plugin-rhythmguard that referenced this pull request Oct 14, 2026
scale: "auto" reads --spacing-xs..2xl from @mozilla-protocol/tokens, and
the Mozilla Protocol benchmark row is measured against 7.0.0 (19 off-scale),
as a Protocol contributor pointed out in mozilla/protocol#1132. The
playground bundle is rebuilt for the new allowlist entry. The outreach log
records the merge of materializecss/materialize#670.

Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>
PetriLahdelma added a commit to PetriLahdelma/stylelint-plugin-rhythmguard that referenced this pull request Oct 14, 2026
scale: "auto" reads --spacing-xs..2xl from @mozilla-protocol/tokens, and
the Mozilla Protocol benchmark row is measured against 7.0.0 (19 off-scale),
as a Protocol contributor pointed out in mozilla/protocol#1132. The
playground bundle is rebuilt for the new allowlist entry. The outreach log
records the merge of materializecss/materialize#670.

Co-authored-by: Claude Opus 5.5 <noreply@anthropic.com>
